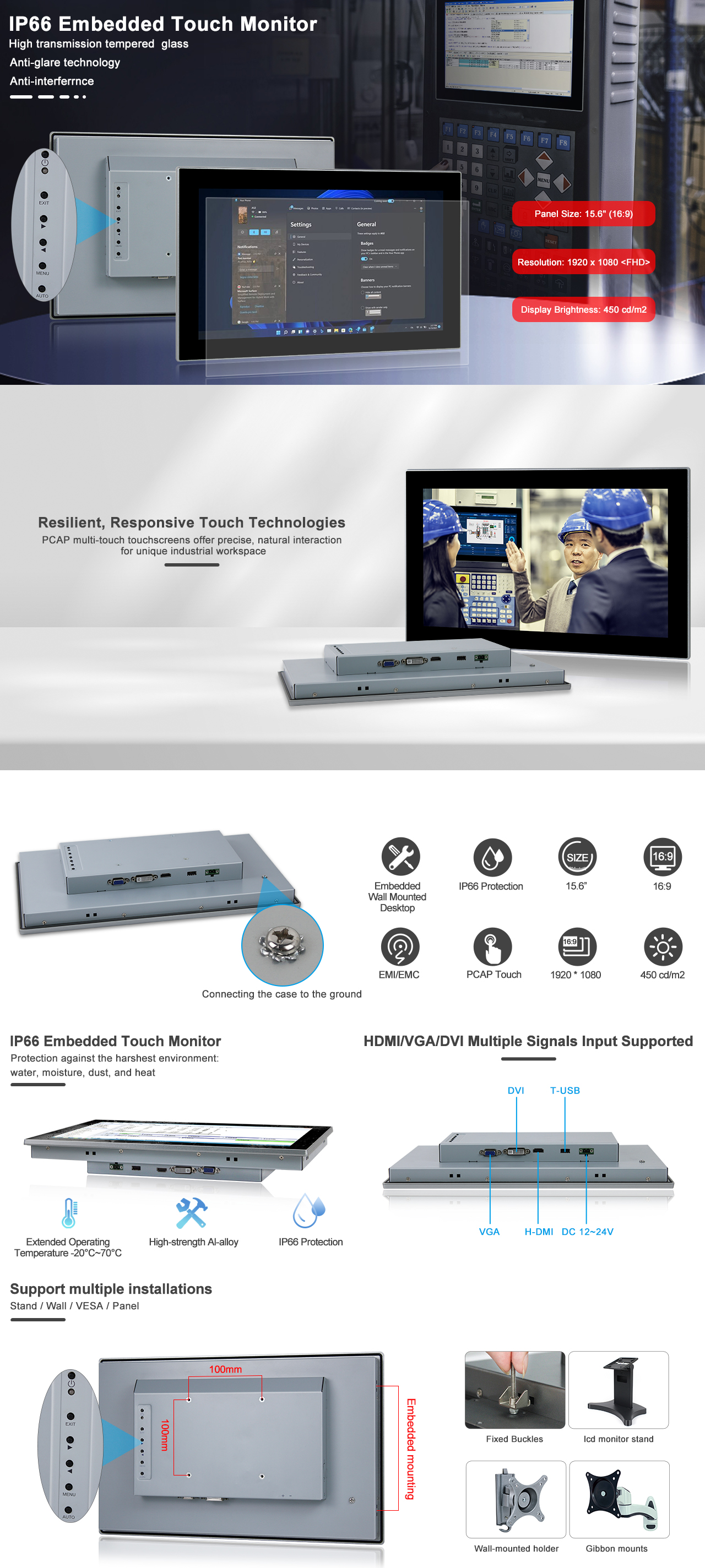

PM-H156WAC
Product features：
- Industrial-grade 15.6" FHD LCD panel with 50k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive control
- IP66 grade aluminum alloy front panel
- Video Input Interfaces:1 x VGA / 1 x HDMI / 1 x DVI
- Support USB Interfaces for Touch Function
- Supports embedded / VESA 100mm x 100mm mounting holes
- Wide Operating Temperature -20°C to 70°C
- 12V to 24V DC Wide Range Power Input
|
Display |
|
|
Panel Size |
15.6" ( 16:9 ) |
|
Resolution |
1920 x 1080 (FHD) |
|
Display Brightness |
450 cd/m2 |
|
Contrast Ratio |
1000:1 |
|
Backlight Lifetime |
50000 Hr (min.) |
|
Viewing Angle |
89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
|
|
Touch Type |
10 point PCAP |
|
Surface Hardness |
≥7H |
|
I / O |
|
|
VGA |
1 x VGA |
|
H-DMI |
1 x H-DMI |
|
DVI |
1 x DVI |
|
USB |
1 x Touch USB |
|
Other I/O Interface |
1 x OSD Control Key |
|
Power |
|
|
Power Adapter |
1 x Optional AC/DC 12V/4A , 48W |
|
Power Input |
2-pin Terminal Block Connector with Power Input 12~24VDC |
|
Power Consumption |
≦30W |
|
Physical |
|
|
Material |
Aluminum alloy panel, anodized treatment |
|
Mounting |
Stand / Wall / VESA / Panel |
|
Dimension (W x H x D） |
400 x 250 x 55 mm |
|
Cut-out Size |
386 x 236 mm |
|
Packing Size |
460 x 180 x 400 mm |
|
Weight (Net) |
3.1 kg |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
IP Level |
Front Panel IP66 |
|
EMC |
CE, FCC，Class A, ROHS, IEC / EN 62368-1 |
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
PM-H156WAC |
15.6” FHD LED / Resolution 1920 x 1080 / PCAP Touch / 1 x VGA / 1 x H-DMI / 1 x DVI / 1 x T-USB / DC IN 12~24V |
|
|
|
|
PACKING LIST |
|
|
1 x 15.6”Embedded Touch Monitor |
|
|
1 x 1.5m H-DMI Cable |
|
|
1 x 1.5m T-USB Cable |
|
|
8 x Embedded Buckles |
|
|
1 x Power Adaptor |
|
