System

CPU

Intel® Bay Trail Celeron J1900 Quad-core 2.0GHz , TDP 10W

L2 Cache

2MB

System Chipset

Integrated with Intel® SoC

Memory

DDR3L 1333MHz 4GB, Up to 8GB

Harddisk

1 x mSATA 128G SSD（250G / 500G / 1TB SSD) / 1 x 2.5" SATA

Graphics

Intel HD Graphics

Network

Intel® I211-AT GbE LAN

Audio

Realtek ACL662 Audio controller

TPM

TPM 2.0

Operation System

Windows 7 / 8 / 10， Linux, Ubuntu

I / O

VIDEO

 1 x H-DMI

Ethernet

2 x LAN 10/100/1000 Mbps

USB

3 x USB2.0 / 1 x USB3.0

COM

2 x RS-232 / 422 / 485

Audio

1x Audio_out & Mic_in

Wireless Network

Optional （WiFi / Bluetooth / 4G / )

Power

Power Adapter

1 x Optional AC/DC 12V/4A , 48W

Power Input

2-pin Terminal Block Connector with Power Input 9~36V DC

Power Consumption

≦20W

Physical

Material

Aluminum Alloy Shell

Color

Grey / Silver / Black ( optional )

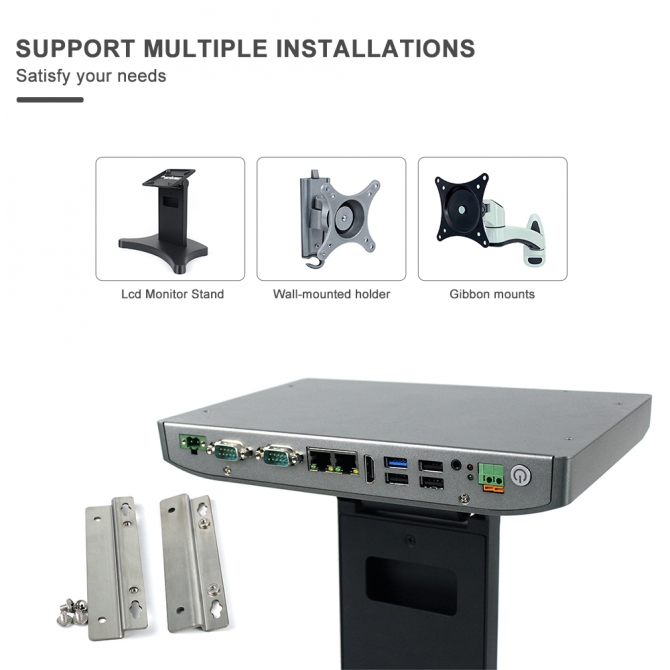

Mounting

272 x 90 mm / 272 x 60 mm

Product Dimension

258 x 158 x 33 mm

Packing Size

360 x 180 x 320 mm

Weight (Net)

1.2 KG

Environment

Operating Temperature

-20~70°C  ( -4~158°F )

Storage Temperature

-30~80°C (-22~176°F)

Relative Humidity

5%~95%@40°C, non-condensing

Vibration Range

1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

EMC

CE, FCC，Class A，ROHS

ORDERING INFORMATION

AVAILABLE MODELS

DESCRIPTION

EFIC-5000JA

Intel Celeron J1900 2.0GHz / 2x Intel®I211 GbE LAN / 2xCOM(RS232 / 422 / 485) 3xUSB2.0 / 1xUSB3.0 / Built-in TPM2.0 for Hardware-based Security / DC 9V~36V （OVP / OCP / RPP）

CONFIGURATION

DESCRIPTION

Memory

RAM：DDR3L 1333MHz SO-DIMM.4GB/8GB

Harddisk

mSATA  SSD：128G (250G/500G/1TB SSD) 1x2.5“SATA

WiFi

Wi-Fi Bluetooth Combo Module, with antenna

PACKING LIST

1x Embedded Fanless Industrial PC

1x CD-ROM

1x Fixed Bracket

1x Power Adaptor
