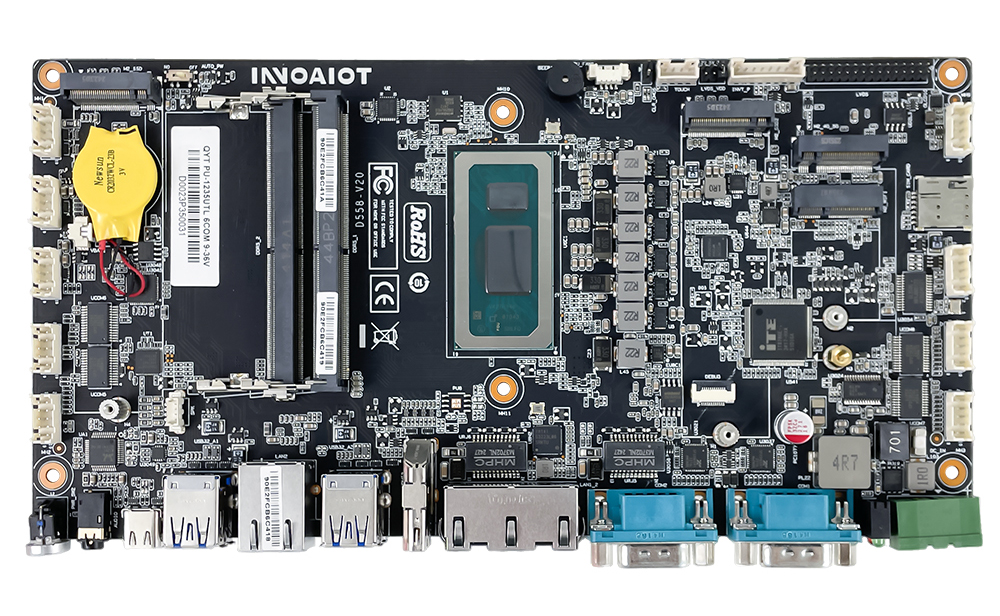

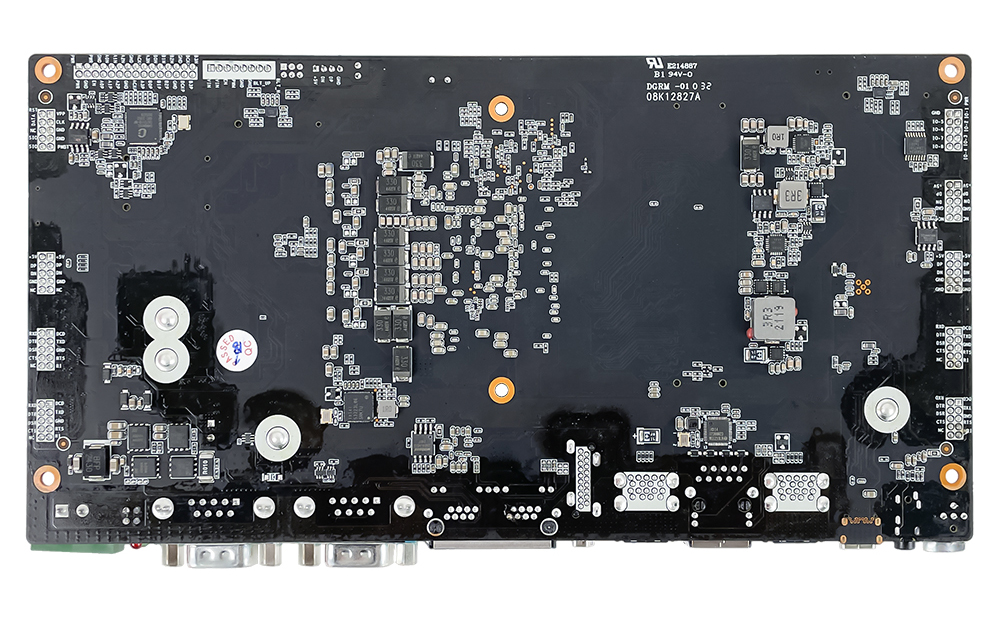

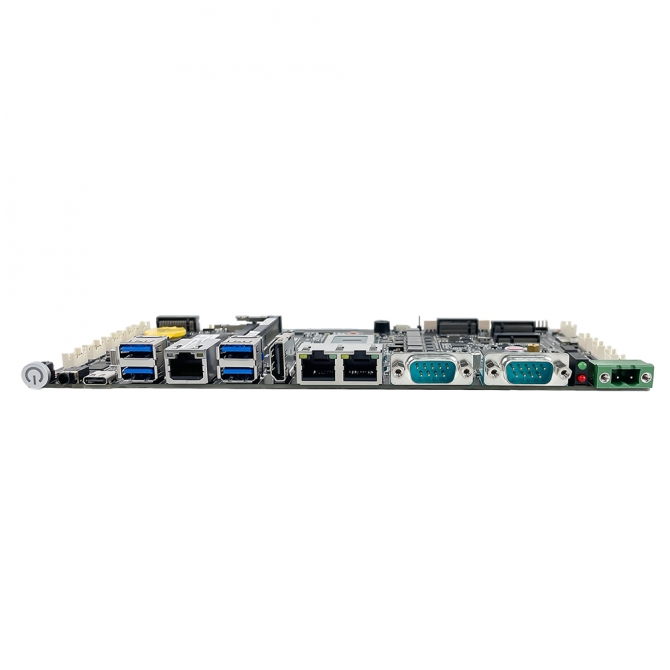

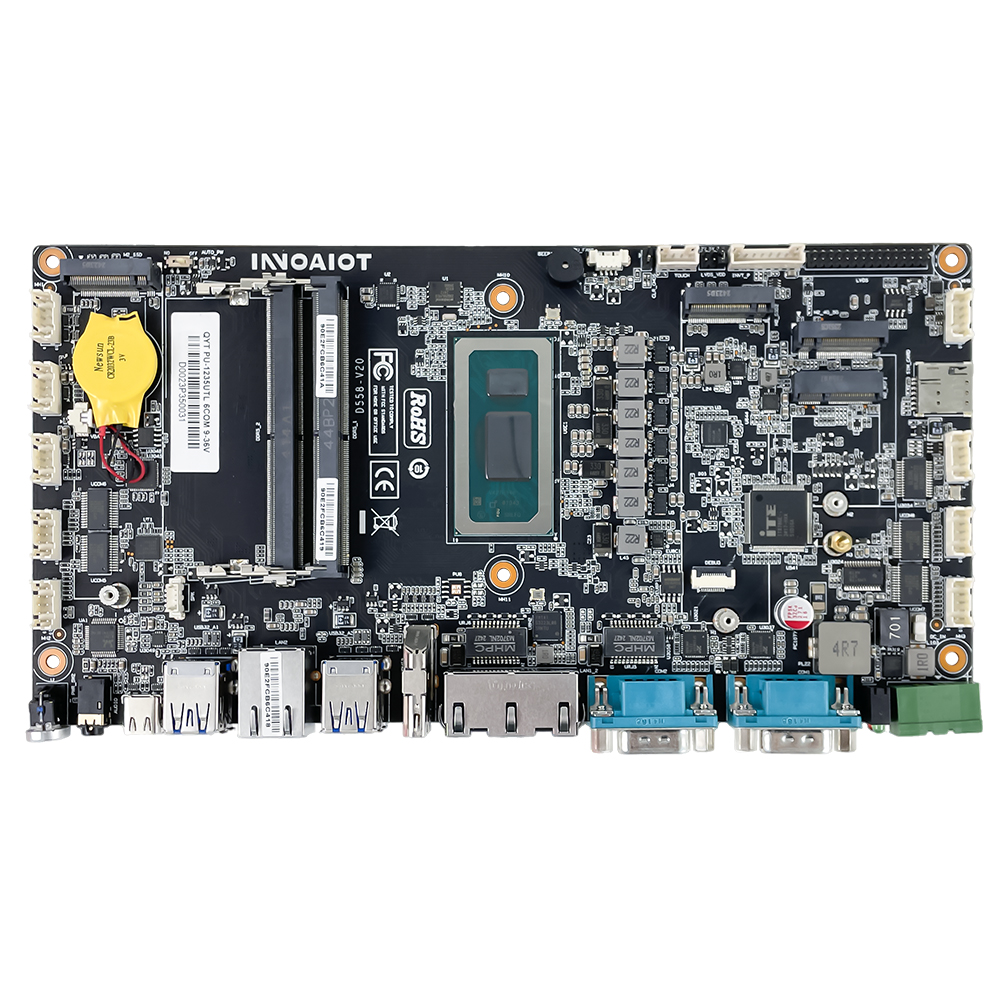

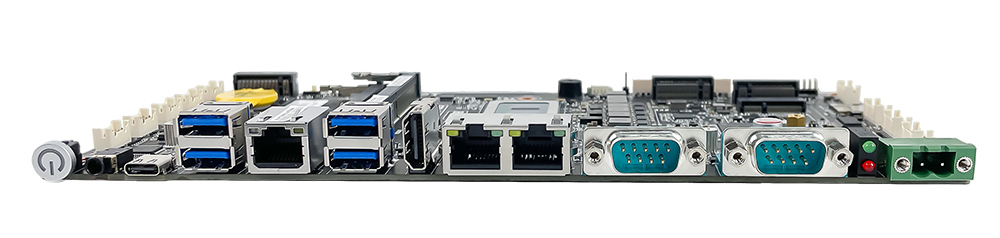

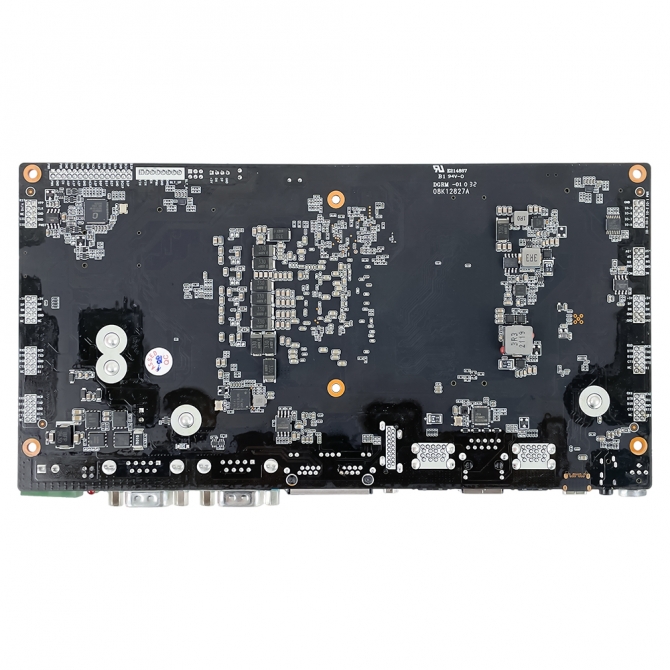

PPC-12th
Product features：
- 12th Gen Intel® Whiskey Lake Core™ i3 / i5 / i7，TDP 15W
- 1 x DDR5 4800MHz SODIMM, MAX 64GB
- 1 x 2.5 SATA HDD, 2 x M.2 2280 SATA SSD
- 1 x M2.0 (2230, Wifi+BT)，1 x M2.0 (3042/3052，4G/5G)
- Supports dual independent display:1 x HDMI, 1 x LVDS
- 3 x Intel® 226-V 2.5GbE Ethernet, support WoL and PXE
- 6 x COM (2x RS232/RS422/RS485),ESD and Surge Protection
- Support TPM2.0 hardware security
- 9V to 36VDC Wide Range Power Input，Supporting OVP / OCP / RPP
|
System |
|
|
CPU |
12th Gen Intel® Core™ i3-1215U 1.2GHz / i5-1235U 1.3GHz / i7-1255U 1.7GHz |
|
L2 Cache |
10MB / 12MB / 12MB |
|
TDP |
15W |
|
Chipset |
Integrated with Intel® SoC |
|
BIOS |
AMI UEFI BIOS |
|
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
|
TPM |
TPM 2.0 |
|
Memory |
|
|
Technology |
Single Channel (Non-ECC) DDR5L 4800MHz,up to 64GB |
|
Slot |
1 x DDR5 SO-DIMM Slot |
|
Storage |
|
|
M.2 |
2 x M.2-2280 M Key SSD Slot |
|
Graphic |
|
|
Controller |
Intel® UHD Graphics / Intel® Iris® Xe Graphics |
|
Audio |
|
|
Codec |
Realtek ACL897 Audio controller |
|
I / O |
|
|
Display |
1x HDMI,Max Resolution up to 4096x2160@30Hz |
|
1x LVDS: Dual Channel 18/24-bit, up to 1920x1200 |
|
|
Ethernet |
1x GbE1:Intel I226v 2.5GbE LAN PXE Support |
|
1x GbE2:Intel I226v 2.5GbE LAN PXE Support |
|
|
1x GbE3:Intel I226v 2.5GbE LAN PXE Support |
|
|
USB |
4x USB 3.2 / 1 x Type-C Gen1x1 (5Gbps), Type A |
|
COM |
2x COM 1,COM 2 ( RS-232 / 422 / 485, Adjustable through BIOS ) |
|
Audio |
1x Audio_out & Mic_in |
|
Power Button |
1x Power Button |
|
Internal I/O |
|
|
M.2 |
1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT ) |
|
1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G ) |
|
|
2*M.2 ( Key-M, 2280, NVMe/ SATA, SSD ) |
|
|
GPIO |
1x 8bit GPlO(2*5pin) |
|
USB |
1x T-USB2.0 wafer(1*4pin) |
|
3x USB2.0 wafer(2*5pin) |
|
|
COM |
4x RS232 wafer(2*5pin)(COM3/COM4/COM5/COM6) |
|
CPU |
1x CPU-FAN (1*4pin) |
|
SPK |
1x SPK 2W8Ω wafer (1*4pin) |
|
Invertor |
1x 12V/5V/3V Selectable |
|
SIM Slot |
1x SIM Socket |
|
Power |
|
|
Power Mode |
Support AT, ATX Mode |
|
Power Supply Voltage |
DC IN 9~36V |
|
Power Connector |
1x 2-pin Phoenix Terminal Block |
|
Power Protection |
OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP（Reverse Polarity Protection） |
|
Operating System |
|
|
Windows |
Windows10/11 IoT Enterprise |
|
Linux |
Linux |
|
Physical |
|
|
Dimensions |
236mm x 120mm |
|
Weights |
0.7kg |
|
Environment |
|
|
Operating Temperature |
-20°c ~70°C, 10 ~90%( non-cpmdemsing ) |
|
Storage Temperature |
-40°c ~80°C, 10 ~90%( non-cpmdemsing ) |
|
Certification |
CE/FCC Class A |
