M.2 Keys and Form Factors Explained

Author:Eleanor Hayes
Time:2025-07-03 17:09:41
Visit:12
M.2 Keys and Form Factors Explained

M.2 expansion is rapidly becoming the standard choice for onboard expansion in embedded and industrial computing systems, gradually replacing older interfaces like mPCIe and mSATA for both storage and peripheral connectivity. Introduced by Intel in 2015 as the Next Generation Form Factor (NGFF), the M.2 interface supports a wide range of applications, including faster onboard SSD read/write speeds and wireless connectivity integration. By utilizing up to four data lanes to communicate with the system's CPU, M.2 offers significantly higher data transfer speeds. This guide will explain M.2 keys and form factors in detail.


What Is M.2?


M.2 is the latest standard for compact internal expansion modules directly integrated into the motherboard. Compared to its predecessors, mPCIe and mSATA, the next-generation M.2 form factor offers enhanced speed and greater versatility for both storage and expansion needs. With support for various data rates and a more advanced signaling protocol, M.2 delivers improved performance, lower software overhead, and higher overall system reliability.


The M.2 standard was developed to replace the older mSATA standard. Its primary advantage is its compact size, making it ideal for small devices. M.2 slots are common in ultrabooks and desktops. M.2 supports different interfaces, including PCIe and SATA. This versatility allows it to support a range of devices, from storage drives to wireless cards. This adaptability is a major strength of the M.2 standard.


Key features of M.2 include:


  •  Small footprint for space-saving designs
  •  Support for multiple interfaces
  •  High-speed data transfer rates


Overall, M.2 offers significant performance improvements. It maximizes available motherboard space and enhances data transfer rates, revolutionizing computing capabilities.

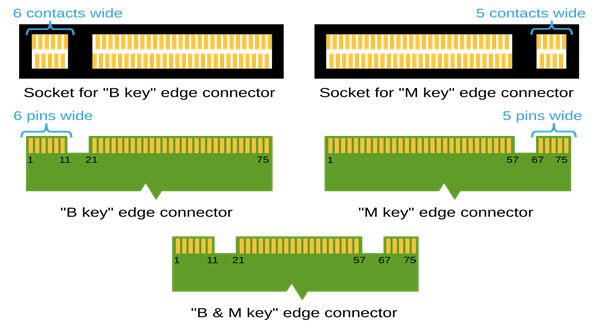

What Are M.2 Keys and Why Do They Matter?


M.2 keys are essential notches on connectors. They determine which types of devices can connect to a motherboard. This feature prevents incorrect installations and potential hardware damage. These keys are crucial for ensuring compatibility with different interfaces. Each key supports specific types of devices and protocols. This specificity means devices fit securely and function correctly without errors. There are several key types, each with unique functions. These keys serve different purposes and interfaces. For example, Key B supports PCIe x2 and SATA, while Key M provides PCIe x4 support. The most common ones include:


  •  Key B
  •  Key M
  •  Key B+M
  •  Key E



The M.2 form factor refers to the width and length of the module. Each M.2 size uses a 4-digit code that shows these dimensions. For example, “2280” means the module is 22 mm wide and 80 mm long. This is a common size for M-Key SSDs. M.2 modules come in four standard widths: 12 mm, 16 mm, 22 mm, and 30 mm. Each width supports several lengths, including 16, 26, 30, 38, 42, 60, 80, and 110 mm. Many motherboards support multiple M.2 lengths by offering several mounting holes. This gives users more flexibility when choosing modules or increasing storage capacity.



M.2 modules vary in thickness and can be single-sided or double-sided. Some modules also include fans or heatsinks for better cooling. The standard thickness of the M.2 PCB is 0.8 mm, with a ±10% tolerance. Each side of the module must not exceed 1.5 mm in thickness. Single-sided M.2 modules are ideal for space-limited systems like compact PCs. Double-sided modules can hold more chips, which helps increase storage or add advanced features while staying compact. In some cases, like with M.2 video capture cards, a heatsink is required to cool the chips during heavy workloads or large data processing.


Different M.2 Key Types Explained (B, M, B+M, E, A, A+E)



Key B

Key B is a common M.2 key type. It supports both PCIe x2 and SATA interfaces. This versatility makes it suitable for varied applications, though with moderate data transfer rates.

This key is often used in devices where balancing performance with cost is vital. It offers flexibility in compatibility with multiple devices. Key B usually pairs with storage and connectivity solutions.


Key M

Key M is favored for high-performance needs. It supports PCIe x4, enabling faster data transfer speeds. This key is ideal for users seeking quick storage performance.

Typically found in high-end SSDs, Key M provides significant advantages. For gamers and professionals requiring rapid data access, this is a preferred choice.


Key B+M

The Key B+M combo is a dual-key design. It allows devices to support both PCIe x2 and SATA. This dual compatibility means broader device support.

This key type is perfect for users uncertain about their system's compatibility. It offers flexibility and reduces concerns about interface limitations. An all-in-one solution can improve usability across different systems.


Key E

Key E is mainly used for wireless cards. It supports PCIe x1 and USB 2.0 connections. This key is key for integrating Wi-Fi and Bluetooth capabilities into devices.

Opting for Key E provides seamless connectivity options. It allows for easy integration of wireless modules in compact builds and systems.


Key A and A+E

Key A is less common. It offers PCIe x2 connectivity. Key A is somewhat niche, serving specific needs.

Key A+E combines features for broader use. It benefits devices requiring both connectivity and storage. Though less popular, it fills a niche role in specialized hardware applications.


Key Type Supported Interfaces PCIe Lanes Common Use / Description
Key B PCIe + SATA PCIe x2 Used in SATA SSDs, some NVMe SSDs, WWAN cards
Key M PCIe PCIe x4 High-speed NVMe SSDs
Key B+M PCIe + SATA PCIe x2 Versatile compatibility with more SSD types
Key E PCIe + USB 2.0 PCIe x1 Wi-Fi, Bluetooth, and wireless communication
Key A PCIe PCIe x2 Typically for Wi-Fi and Bluetooth modules
Key A+E PCIe + USB 2.0 PCIe x1/x2 Hybrid design, flexible for wireless cards



Understanding these keys enhances decision-making when selecting components. It ensures optimal configurations and prevents costly errors. Their unique functions help align hardware with specific needs and applications.

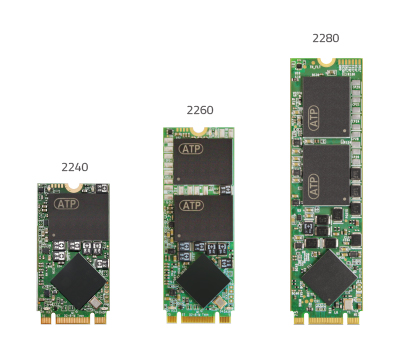

M.2 Form Factors: Sizes and Their Meaning (2230, 2242, 2260, 2280, 22110)


credits: ATP

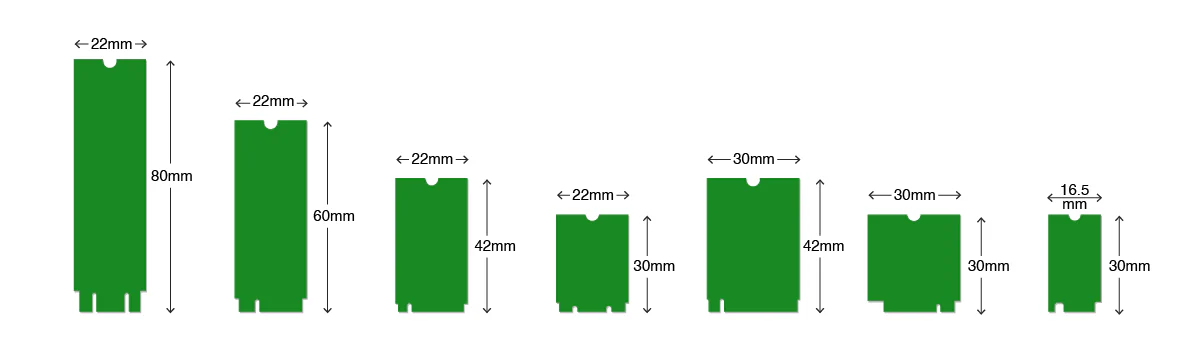

M.2 form factors refer to the physical size of the M.2 card. These numbers are crucial for ensuring the card fits into your device. For example, a form factor like 2230 indicates specific dimensions.

The first two digits represent the width in millimeters. The remaining numbers indicate the card's length. So, a 2230 card is 22mm wide and 30mm long. Most common among these is 2280. It strikes a balance between size and capability, making it widely used. Other sizes, like 2230 or 22110, serve niche applications or specific hardware needs.



Common M.2 Form Factors


  •  2230: Compact devices, often in ultrabooks.
  •  2242: Portable solutions, moderate performance.
  •  2260: Mid-range, balance between size and power.
  •  2280: Most common, high performance.
  •  22110: Larger, high-end storage, servers.






Understanding these sizes helps choose the right M.2 card for your device. Each form factor is tailored to meet specific usage demands. Identifying the right size ensures smooth integration and optimal performance.



M.2 Interfaces and Protocols: SATA, PCIe, NVMe, and More



M.2 interfaces determine the speed and compatibility of storage devices. The M.2 standard supports different interfaces, each offering unique benefits. Knowing these can maximize your system's performance.

SATA and PCIe are the two main interfaces for M.2 SSDs. SATA offers widespread compatibility but slower speeds. Conversely, PCIe provides faster data transfer rates and is preferred for high-performance applications.

Within PCIe, NVMe stands out for delivering superior speeds and efficiency. NVMe SSDs leverage PCIe's capabilities, making them ideal for tasks demanding rapid data access. They outperform traditional storage in boot and load times.



Key M.2 Interfaces and Protocols


  •  SATA: Older, reliable, moderate speeds.
  •  PCIe: Newer, faster data transfer rates.
  •  NVMe: High-speed interface, optimal for heavy data tasks.




Choosing the right interface depends on your system requirements. Understanding these options ensures you select the best SSD for your needs. Whether upgrading or building a new system, always check compatibility with your motherboard's specifications.





M.2 SSD Compatibility: How to Check and Avoid Mistakes



Ensuring compatibility between your M.2 SSD and motherboard is critical. Before purchasing, verify the specs of your motherboard. This avoids costly and frustrating mistakes.

Start by identifying the M.2 slots available on your motherboard. Check the supported key types, which determine compatible SSDs. Knowing whether your slot supports NVMe, SATA, or both is essential.

Motherboard manuals often detail compatible M.2 interfaces and form factors. Cross-reference this information with the specifications of the SSD you plan to buy. This step helps prevent the common error of purchasing an incompatible drive.



Steps to Ensure Compatibility


  1. Check your motherboard's M.2 slot specifications.
  2. Verify supported key types (B, M, B+M).
  3. Ensure interface compatibility (NVMe or SATA).
  4. Confirm form factor support (2230, 2242, etc.).




By following these steps, you avoid potential mismatches. This ensures smooth installation and optimal performance. Proper preparation is key to a successful M.2 upgrade.



M.2 in Action: Use Cases Beyond Storage (Wi-Fi, Bluetooth, and More)


M.2 slots are not limited to storage drives. They offer flexibility for various expansions. Many devices employ them for additional features.

Common uses include integrating wireless technologies. Devices can enhance connectivity with Wi-Fi or Bluetooth modules using M.2. These expansions utilize the Key E type.

Beyond basic connectivity, M.2 slots support other functions. They facilitate specialized expansions like cellular modems and GPS modules. This versatility makes M.2 crucial in adapting to modern needs.


Non-Storage Applications of M.2


  •  Wi-Fi modules
  •  Bluetooth cards
  •  Cellular modems
  •  GPS modules




The multifaceted capabilities of M.2 slots enable a range of technological enhancements. They contribute significantly to device functionality.


M.2 SSDs vs. Traditional SSDs: Performance and Benefits


M.2 SSDs provide several advantages over traditional 2.5-inch SSDs. They are more compact and fit into smaller spaces. This makes them ideal for ultra-slim laptops and small desktops.

Performance is another key benefit. M.2 SSDs, particularly those using NVMe, offer faster data transfer rates. This speed improves system responsiveness and load times.

Choosing between M.2 and traditional SSDs involves considering benefits like size and performance. M.2 drives often excel in energy efficiency and space savings. However, traditional SSDs may still serve well in older systems.


Advantages of M.2 SSDs


  •  Compact size and lightweight
  •  Higher data transfer rates
  •  Improved energy efficiency




Overall, M.2 SSDs are a strong choice for modern computing needs. They optimize performance while saving space and energy.


Tips for Choosing the Right M.2 SSD or Expansion Card


Selecting the correct M.2 component requires careful consideration of your system's requirements and compatibility. Verify your motherboard's specifications to ensure support for the M.2 key and form factor you need.

Additionally, evaluate the interface your device supports, whether SATA or PCIe, to maximize performance. Consider your use case to determine the necessary speed and storage capacity.


Key Factors to Consider


  •  Motherboard compatibility and slot type
  •  Supported interface: SATA or PCIe
  •  Desired storage capacity and speed


With these factors in mind, you can make an informed decision that enhances your device's performance.


Why Understanding M.2 Keys and Form Factors Matters


Understanding M.2 keys and form factors is crucial for optimizing computer performance and ensuring compatibility. As technology evolves, knowing these details helps prevent errors during upgrades and installations.

Whether you're building a gaming rig or a compact PC, M.2 components offer a balance of speed and efficiency. By mastering this knowledge, you ensure the future-proofing of your setup while enhancing your system's potential.


FAQs About M.2 SSDs


 1. What is the difference between M.2 SATA and NVMe?


 M.2 SATA uses the SATA protocol, similar to traditional SSDs. NVMe, however, provides faster data transfer rates.


2. Can all motherboards support M.2 SSDs?


 Not all motherboards have M.2 slots. Check your motherboard specifications to confirm if it supports an M.2 drive.
