InnoAioT EFIC-2012R is the Iatest DIN-Rail Fanless Industrial computer, equipped with the 12th generation Intel® Alder Lake processor, configured with up to 10 cores (2P+8E) and 12 threads, and its processing performance is more than 1.35 times that of Comet Lake.    EFIC-2012R's comprehensive high-efficiency core and powerful multi-thread processing capability can realize simultaneous processing of multiple tasks and complex data analysis.    The memory of EFIC-2012R supports DDR5 64GB 4800MHz and ECC error correction technology, which can detect and correct errors in the memory in real time to ensure the stability and reliability in the process of data processing and transmission.    The Intel® UHD Graphics display chip provides powerful graphics processing capabilities, enabling finer image display and visual data analysis.  EFIC-2012R DIN-Rail Industrial PC is equipped with rich I/O interfaces, including 2 2.5GbE and 1 1GbE network ports;    2 COM (RS-232 / 422 / 485 ) interfaces;    4 USB 3.2 Gen2 interfaces;    2 HD-MI supports dual independent display;    built-in expansion slot, Expandable M.2 (Key-E, 2230, PCIe+USB, Wifi+BT), M.2 (Key-B, 2242/3052, PCIe/ USB 3.0+USB2.0, 4G/5G), M.2 (Key-M, 2280, PCIe x4 NVMe/ SATA, SSD), providing complete wireless transmission methods, such as WiFi, GNSS, 4G/5G and Bluetooth, etc.

Low-Power & High-Performance

Industrial PC is equipped with the 12th gen Intel® Alder Lake Core processor. it can provide Core i3-1215U 1.2GHz, i5-1235U 1.3GHz, i7-1255U 1.7GHz processor options. Compared with the 8th generation solution. InnoAioT's design improves the performance of CUP by up to 24%. At the same time, the memory DDR5 4800mhz data speed is 1.5 times that of DDR4, dual-channel SODIMM x 2, up to 64GB, and the graphics processing capability has been increased by 2 times.  The 12th generation equipped with EFIC-2012R provides stable support for various industry applications through its powerful design functions and

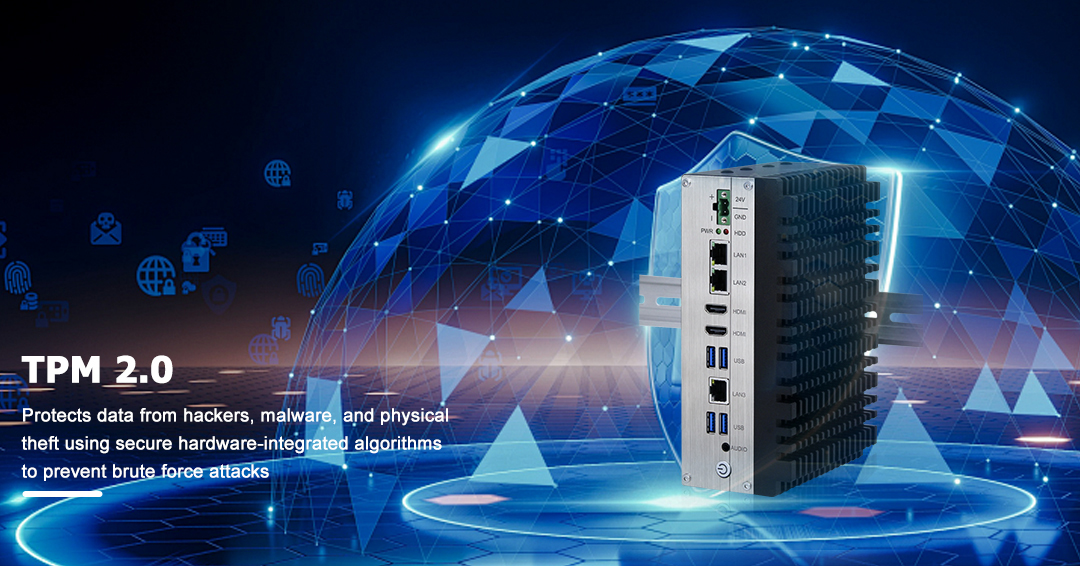

TPM Function

The TPM standard ensures secure data storage and platform authentication and integrity auditing.  The three-tier structure of TPM 2.0 allows the use of multiple keys to improve the security of the TPM 2.0 standard, which provides better protection against malware and rogue applications that affect legitimate processes.

Wide Temperature

Fanless design for heat dissipation, DIN-Rail industrial PC can operate in extreme cold and hot environments ranging from minus -30°C to plus 70°C.

Wide Pressure

When connecting a DIN-Rail box PC to an external system，the ability to control the voltage input is critical to extending the life of the hardware.  The embedded industrial computer has OVP (overvoltage protection), OCP (overcurrent protection) and RVP (reverse connection protection).   The OVP function will automatically cut off the power input exceeding 40V to avoid burning internal components.  The system is compatible with the input range of 9V to 36V and is suitable for deployment in different applications

Main Features
1. All-aluminium alloy structure rugged and compact, Fan active cooling

2. Intel 12th Core™ i3-1215U 1.2GHz TDP 15W

3. Supports wall-mounted or DIN-Rail rail mounting

4. 2 x HDMI、3 x LAN（2.5GbE/1GbE）4 x USB3.2 Gen2、2 x COM(RS-232 / 422 / 485 )

5. Encryption onboard TPM2.0 module supported

6. DC 9~36V, Overcurrent, Overvoltage & Reverse Polarity Protection
