What is InnoAioT Waterproof Panel PC?

A waterproof panel PC is an all-in-one industrial computer designed to perform reliably in harsh, wet, and dusty environments. InnoAioT’s WPC-24WDC-12th Panel PC is a rugged all-in-one touchscreen computer that integrates powerful computing performance with a fully waterproof enclosure. Built with stainless steel SUS304/SUS316 and sealed to IP66/IP69K standards, it’s the perfect solution for food processing, pharmaceutical, outdoor kiosks, and other demanding settings.

Thanks to its 12th Gen Intel® Alder Lake processors and support for DDR5 memory up to 64GB, this Panel PC delivers high-speed performance with ultra-low power consumption. It’s also built for reliability, with an industrial-grade 23.8” Full HD display and optical bonding PCAP touch panel that supports multi-touch input—even when wet or used with gloves.

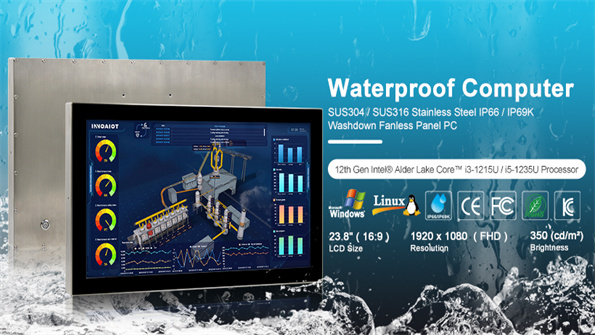

InnoAioT’s WPC-24WDC-12th: Compact yet powerful Waterproof Panel PC for industrial applications

When planning a cleanroom, marine, or outdoor workstation, InnoAioT’s WPC-24WDC-12th is the go-to choice. Its compact form factor (583 x 353 x 45 mm) makes it easy to install in confined or mobile spaces, and the IP66/IP69K waterproof design ensures stable operation under high-pressure washdowns or humid conditions.

Supporting either Intel® Core™ i3-1215U or i5-1235U CPUs, and equipped with Intel® UHD or Iris® Xe Graphics, it delivers performance capable of handling high-resolution displays and demanding multitasking.

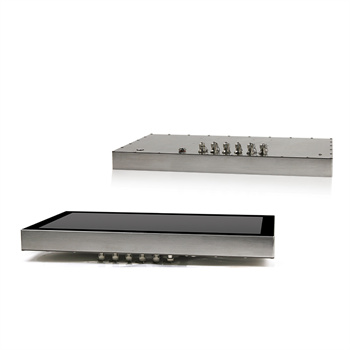

To ensure system flexibility and seamless integration, the unit features multiple waterproof M12 I/O connectors, including 2 x LAN, 2 x USB, and 1 x COM, plus expansion options for WiFi, Bluetooth, 4G, or 5G via its M.2 slots and SIM card socket.

Step-by-step example: Using InnoAioT’s WPC-24WDC-12th in a Seafood Processing Plant

Seafood processing environments are known for their high humidity, corrosive atmosphere, and strict hygiene regulations. In such scenarios, the WPC-24WDC-12th is the ideal solution for digitizing production control.

Here’s how it works across the process:

Mounting and setup

The WPC-24WDC-12th can be wall-mounted or yoke-mounted near conveyor lines. With its stainless steel housing (optional SUS316 for corrosion resistance), it withstands salt exposure and regular washdowns with high-pressure water.

Data input and system interaction

Operators interact with the machine via a 23.8" FHD touch screen that supports glove and wet-hand operation, thanks to optical bonding and ≥7H surface hardness. Windows 10/11 or Ubuntu ensures compatibility with SCADA/HMI systems.

Real-time monitoring and control

The unit’s M12 waterproof connectors ensure safe and secure network and sensor connectivity, even in wet conditions. It connects via Intel® I226-V Gigabit LAN or optional 5G for real-time data uploads and cloud management.

Power protection and stability

With wide 9–36V DC input and protections including OVP, OCP, and RPP, the Panel PC ensures stable and safe operation. Its watchdog timer prevents system lockups by resetting the unit if needed.

Why choose InnoAioT Waterproof Panel PCs for industrial digitalization?

InnoAioT has spent years innovating waterproof computing solutions for industrial automation. Here are seven core advantages of the WPC-24WDC-12th:

• • Rugged Design for Extreme Conditions: IP66/IP69K-rated and built with food-grade stainless steel.
• • High Performance: Powered by 12th Gen Intel® Core™ processors with DDR5 RAM.

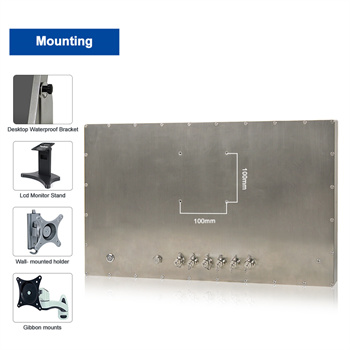

• • Versatile Mounting: Stand, VESA, wall, or yoke mounting for flexible deployment.
• • Seamless Integration: Multiple M12 I/O ports and expansion slots for wireless modules.
• • Advanced Display: 23.8” FHD screen with 350-nit brightness and wide viewing angles.
• • Energy Efficient: Low power consumption under 45W, with advanced power protections.
• • Broad Compatibility: Runs Windows 10/11, Linux, Ubuntu for various industrial software.

If you're looking for a powerful, reliable, and waterproof computing solution for industrial environments, InnoAioT’s WPC-24WDC-12th  waterproof panel PC is your ideal partner. Contact us today to get a quote or request a demo!
